PERS-3600B | Personal Emergency Reporting System
A Complete Emergency System For Comprehensive Care
The Linear PERS-3600B includes a built-in speakerphone
and reminder message capability, providing a comprehensive
Personal Emergency Reporting System. Medical Alert Alarm for
Seniors and Elderly thoughout Los Angeles and California
Complete Medical and Assistance Alert
Serving Los Angeles, Orange County, Ventura County
1-800-654-7797
Features and Functions
The PERS-3600B offers advanced capabilities as the hub of a wireless Personal
Emergency Reporting System, and can be used with the full suite of Linear’s DXS

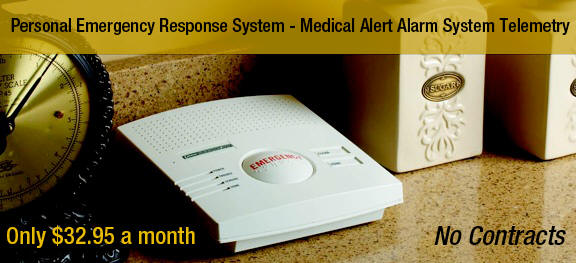

wireless personal transmitters and accessories. The table-top Console features
a built-in speakerphone and digital communicator for reporting and two-way
voice communication with the Central Monitoring Station. Advanced, full-duplex
speakerphone circuitry provides superior two-way voice communication throughout
the Los Angeles and California homes.
Simple Operation
• Pushbutton Emergency Assistance – A button press on the Console or
wireless transmitter automatically places a call to the Emergency Monitoring
Center, staffed 24 hours a day by trained professionals. Operators then notify
pre-selected contacts to respond in specific situations.
• Multiple Zone Capability – Capacity for up to 16 individual sensors.
Can provide emergency reporting for multiple users, and/or household
monitoring functions.
• Silent Alarm and Alarm Tones – Provides silent alarm capability (as panic
button for domestic violence applications) and separate tones for emergency,
fire and CO conditions.
• Built-In Activity Timer – Monitors household activity when turned on (system
default is off). Set for 8, 12 or 24-hour operation, the emergency alarm will
trigger automatically if the time set elapses before an activity transmitter is
triggered, or before the Console’s HOME button is pressed.
• Flexible Reporting Options – Console routes reports to any of three
programmed telephone numbers, primary, secondary or supervisory.
• Personal Wireless Transmitters – Effective signal coverage extends
throughout the house and outdoors
Extensive Audio Capability
• Easy to Use Console – Console speaks to the subscriber in clear, natural
language during set-up and system operation.
• Two-Way Voice Capability – Users talk directly to Emergency Monitoring
Center professionals via 2-way voice activated, 2-way manual, or 1-way,
listen-only audio communications.
• Remote Call-in Feature For Speakerphone Operation – Subscriber can
answer the phone with a pendant press. Family members or caregivers can
also enter a PIN code to start a speakerphone call if the client can’t reach
their phone or pendant.
• Reminder Messages – Plays 15-second audio messages, recorded locally
in a family member’s voice, to remind subscribers to take medications, call
someone, get ready for an appointment, etc.
Supervision and Test
• Full System Auto Test – The Console can be programmed to monitor all
zones for proper operation, and can provide a periodic test report to the
monitoring station on a 1, 7 or 30 day interval.
• Transmitter Status Reporting & Supervision – Optional status reporting
mode allows the transmitter to be paired with zone supervision at the
Console for automatic “sensor status trouble” reporting.
• Console-Supervised Battery Recharging – If the backup battery becomes
low, the POWER light will flash and the condition can be reported to the
central station.
• Transmitter Low Battery Monitoring – Under normal operating conditions,
the transmitter detects low battery voltage and provides a status report to
its console.
Effortless Installation
• Easy Installation and Programming – Set up is made easy by Linear’s RA-2400
remote access software.
• Tested for Reliability – UL listed as Home Healthcare Signaling Equipment per
Standard 1637.
Options For Expanded Utility
Installation and use of a variety of optional equipment broadens the
PERS-2400B’s utility.
Smoke Detector
• The DXS-73 Supervised Photoelectric Smoke Detector will sound a loud
alarm when smoke is detected, Twenty seconds after the local alarm sounds,
the built-in transmitter sends a digitally coded wireless signal to the PERS
console. The wireless signal will be repeated every 20 seconds as long as
smoke is still present.
Carbon Monoxide Detector
• The DXS-80 Carbon Monoxide Detector will initiate an automatic call to the
Emergency Monitoring Center. Warning tones will be sounded by the console
and the detectors will alert the subscriber, even during sleep.
Versatile personal transmitters
can be worn as a pendant,
wrist band or clipped to a
belt or pocket.
Compatible Supervised Stationary Transmitters
PRODUCT
MODEL
NUMBER
DESCRIPTION
DXS-31
SST00073
Supervised Universal Door/Window Transmitter
(for emergency and inactivity reporting)
Supervised Universal Door/Window transmitter with built-in
magnetic switch, accepts N/O or N/C external devices,
supervised for low battery and sends hourly status signals
DXS-32
SST00100
Supervised Miniature Door/Window Transmitter
Supervised miniature Door/Window transmitter with built-in
magnetic switch, supervised for low battery and sends
hourly status signals
DXS-54
SST00074
Supervised Passive Infrared Motion Detector
(for inactivity reporting)
Supervised passive infrared motion sensor with built-in
transmitter, supervised for low battery and sends hourly
status signals
DXS-73
SST00113
Supervised Photoelectric Smoke Detector
Supervised photoelectric smoke detector with built-in
transmitter, supervised for low battery and sends hourly
status signals
DXS-80
SST00116
Supervised Carbon Monoxide Detector Transmitter
Supervised carbon monoxide (CO) detector with built-in
transmitter, supervised for low battery and sends hourly
status signals
Available Models and Accessories
PRODUCT
MODEL
NUMBER
DESCRIPTION
PERS-3600B
SSC00062B
Personal Emergency Reporting System
Supervised emergency reporting system receiver/control,
monitors up to 16 transmitters, can be manually activated,
activity timer option, two-way voice option, point-ID reporting
allows multiple subscribers
RJ-ADAPT
AAE00435
RJ-31X Telephone Adapter
RJ-31X adapter for PERS-3600B Console
RSM-1
CAE00191
Remote Speaker/Microphone
External Remote Speaker / Microphone kit for Two-Way voice
for the PERS-2400B or PERS-3600B, comes in an attractive
plastic case that houses an 8-ohm speaker and microphone,
unit can be tabletop or wall mounted
Compatible Supervised Portable Transmitters (DXS Format)
PRODUCT
MODEL
NUMBER
DESCRIPTION
DXS-62A
SST00090A
Supervised 1-Button, 1-Channel Water-Resistant
Wristband/Pendant Transmitter
Miniature one button, one-channel, water-resistant, supervised
transmitter designed for use in emergency applications, includes
adjustable lanyard with breakaway release, wrist band and belt/
pocket clip, visual activation indicator.
DXS-64
SST00112
Supervised 1-Button, 1 Channel Pendant Transmitter
Pendant style water-resistant transmitter designed for use
in emergency applications, includes adjustable lanyard with
breakaway release, visual activation indicator
DXS-LRW
SST00123
Supervised 1-Button, Long-Range Wristwatch Transmitter
Wrist version of the LR transmitter series, designed for use in
emergency applications. Updated design, shock and water-
resistant*, supervised transmitter with improved transmission
range and two-color visual activation indicator. Capable of field
enrolling with compatible panels and consoles.
DXS-LRP
SST00122 (White) Supervised 1-Button, Long-Range Pendant Transmitter
SST00126 (Black) Pendant version of the LR transmitter series, with performance
features as listed in the DXS-LRW. Product is provided factory
pre-assembled on an adjustable lanyard with a breakaway release.
* LR Transmitters - water resistant up to 30 minutes at a depth
of three feet
DXS-65
SST00121
Supervised Emergency Alarm Transmitter
Supervised emergency transmitter with large HELP button,
LED transmission indicator, for wall mounting or tabletop use,
extra blank aqua button included
Outputs: One form “C” relay output activated upon initiation
of any alarm condition
Programming Method: Via RA-2400 remote access software
Inactivity Timer: Software programmable for 8, 12, or
24 hour cycles
Silent Alarm Feature: Software programmable per channel
Delayed Alarm Feature: Software programmable per
channel; delay time 15 or 30 minutes; note that an alarm
will not be transmitted if alarming transmitter sends a
restore signal to the console prior to delay timer timeout
Selectable Two-Way Voice Activation: Software program-
mable per channel
Speakerphone Option: Software programmable; call duration
time selectable for 15, 30, or 60 minutes
Pulse/Tone Dialing: Software or console programmable
Audible Output: Integral siren
Output Tones: Distinct alarm tones provided for emergency
and fire alarm conditions; provisions for timer reset tone also
incorporated into system
Dimensions: 9.00 in L x 5.50 in W x 5.00 in H
(228 x 137 x 76 mm)
Backup Battery: Recommended battery is 12V, 1.2 amp-hour;
Linear part number 100104
Backup Period: 30 hours minimum
Accessories:
Optional RSM-1 Remote Speaker/Microphone
Listing: UL per Standard 1637, Home Healthcare
Signaling Equipment
Listing: UL per Standard 1637, Home Healthcare Signaling
Equipment
Note: The optional RSM-1 is not UL-listed and is not intended
to be used in a UL-listed PERS system.
For more information, please visit www.linearcorp.com.
Specifications subject to change without notice.
UL1637 LISTED
Specifications
R A D I O
Transmitter Capacity: 16 DX or DXS devices
Operating Frequency: 315 MHz
RF Format: Linear DX, DXS
Receiver Type: Dual diversity, superheterodyne
RF Programming Method: Linear quick-learn
C O M M U N I C A T I O N S
Communicator Formats: Contact ID and 4 x 2
(General or Point-to-Point), ADEMCO Contact ID
Dialing Method: Pulse or tone dialing formats, field-enabled
Communicator Reports:
a. All transmitter alarms
b. All transmitter trouble
Supervisory
Low battery
c. All inactivity alarm reports
d. AC power failure
e. AC power restored
f. Console low battery
g. Console emergency alarm
C O N S O L E
Controls:
a. HELP: Large round button with multiple actuation points,
Braille characters
b. CLEAR: Momentary for system reset, call cancellation
c. HOME: Momentary to reset timer or press and hold for
5 seconds to disable the function
d. POWER SWITCH: Controls 120 VAC source, as well as
the backup battery
Indicators: Four LEDs
(POWER, STATUS, SENDING, HOME)
Connections:
a. In and out telephone jacks
b. External speaker, dialer output, and dialer power terminals
